Electronic Signatures in TDO with Topaz Signature Pad

Overview

A new feature in TDO provides user the ability to sign the medical history forms, policy consent forms, pain history form and the credit card receipts using the Topaz signature pad.  The Topaz signature pad can also be used in Infograbber.

Requirements

  • Topaz Signature Pad Signature USB (Gem LCD 1x5, T-L462, or T-L460-HSB-R).  It can be purchased at
    • https://www.tdo-jrorders.com/
    • The new feature will only work with TDO version 11.151a or higher and Infograbber  version 11.55 and higher .
    • There are several models within the Topaz T-L462 and T-L460 families, please make sure you are purchasing the USB models.



Setup

  1. Plug the Topaz Signature Tab in the USB port.

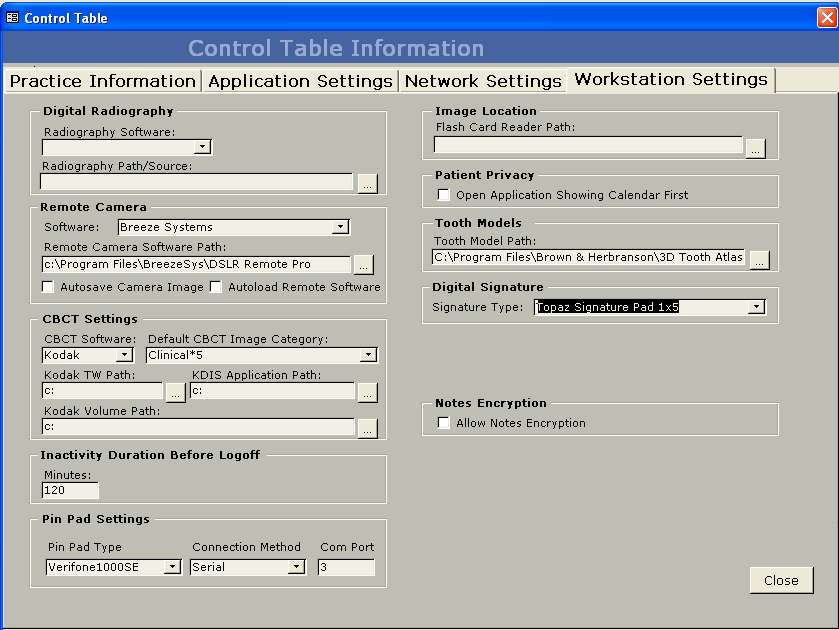

  2. Go to Control Table and click on the Workstation Settings tab.  Select the “Topaz Signature Pad 1x5” in the Signature Type drop down box.  Figure 1.



Figure 1.



Medical History, Pain History and Policy Consent Forms (in TDO)

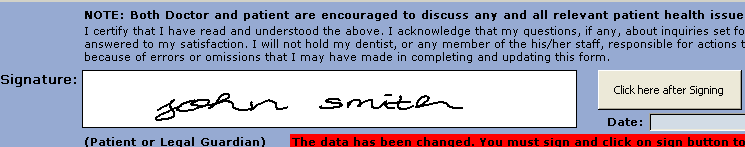

  • When the Medical History form is open, the Topaz signature pad should be ready for the patient to sign.  Have the patient sign the signature pad then have the patient click on the “OK” button on the signature pad.  The user should see the patient’s signature on the form.



  • A message box will display that the signature is complete after the patient signs and clicks on the “OK” button.



  • Click on the OK button and click the “Click here after Signing” button.

The digital signature works the same way in the Pain History and the Policy consent forms.

Infograbber

The Topaz signature pad should be ready for the patient to sign once the patient reaches the signature area in Infograbber.   Patients simply sign the signature pad and click the OK button on the pad.  The user should see the patient’s signature on the form.  A message box will display that the signature is complete after the patient signs and clicks on the “OK” button.

Credit Card Receipts

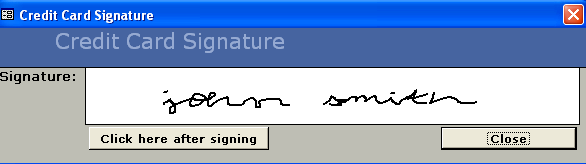

After running a credit card transaction using Worldpay, the display below will show.

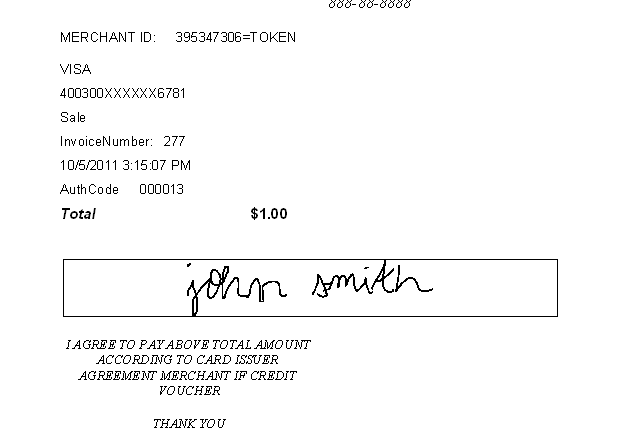

The patient will sign the Topaz signature pad and click on the OK button on the pad.  The user will click on the “Click here after signing” button and the credit card receipt will display with the signature.  There is no need for the office to print a hard copy of the receipt to keep for their records because the signature and the receipt will be kept in the database.  The user can retrieve the receipt at any time.





Troubleshooting

  • The Topaz signature pad does not work after adjusting settings in Edit Control Table

The Topaz signature pad device is plug and play and should not require installation outside of TDO. If it does not work after configuring it in the Edit Control Table, there are several diagnostic tools available on the Topaz website that allows users to check the pads connection.

These diagnostic tools can be found at http://www.topazsystems.com/Software/index.htm (external link)
