Taking X-rays and photos while on Recall Page



Overview:

If the Recall page is open, it is possible to take a Recall radiograph or picture with one click. This article will cover the details of this feature.


Note:

This feature is available in TDO version 12.175b and higher.



Detailed Steps:

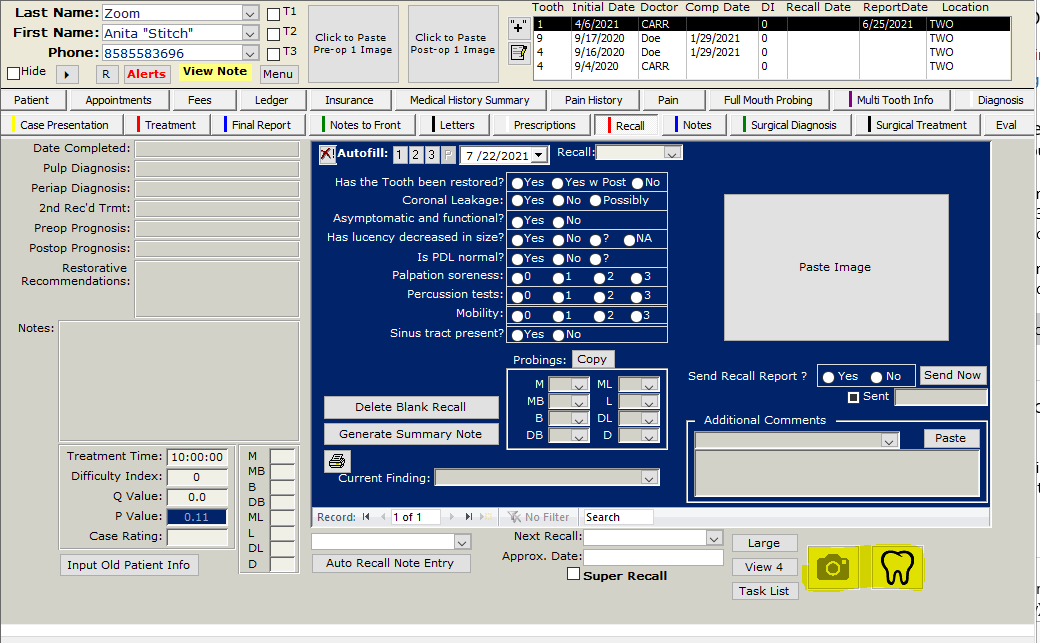

  • After ensuring that you have the correct case selected, open the Recall page. From this page, you can click either the Camera or Tooth icon to take a Recall image (either a Picture or a Radiograph) of the tooth.

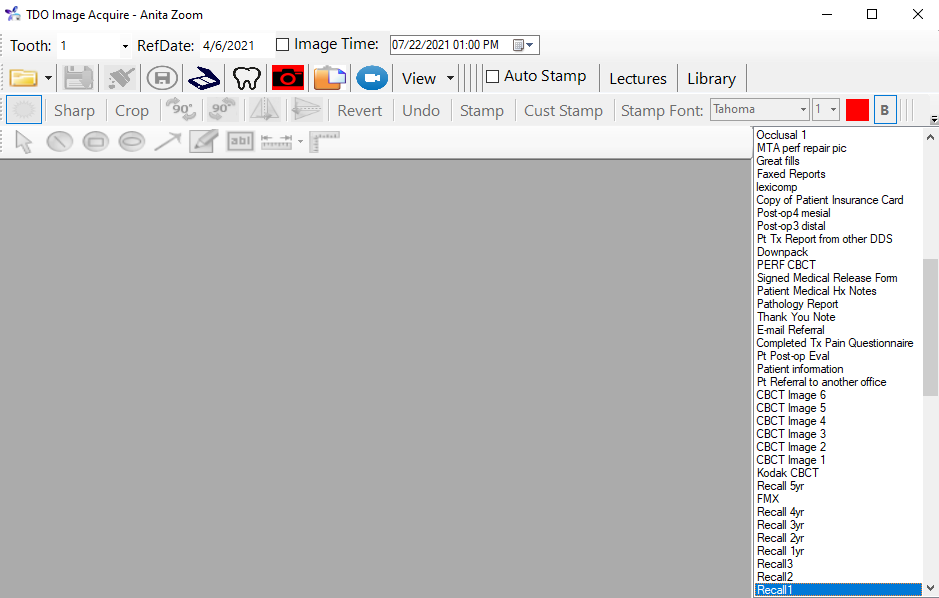

  • Clicking the tooth button will automatically open the Acquire window, select the Recall1 category, and, if you have configured Digital Radiography in the Control Table (v11: [Administrative > Edit Control Table > Workstation Settings > Digital Radiography], v12: [Setup > Site Configuration > Edit Control Table > Workstation Settings > Digital Radiography]), initiate taking a radiograph.

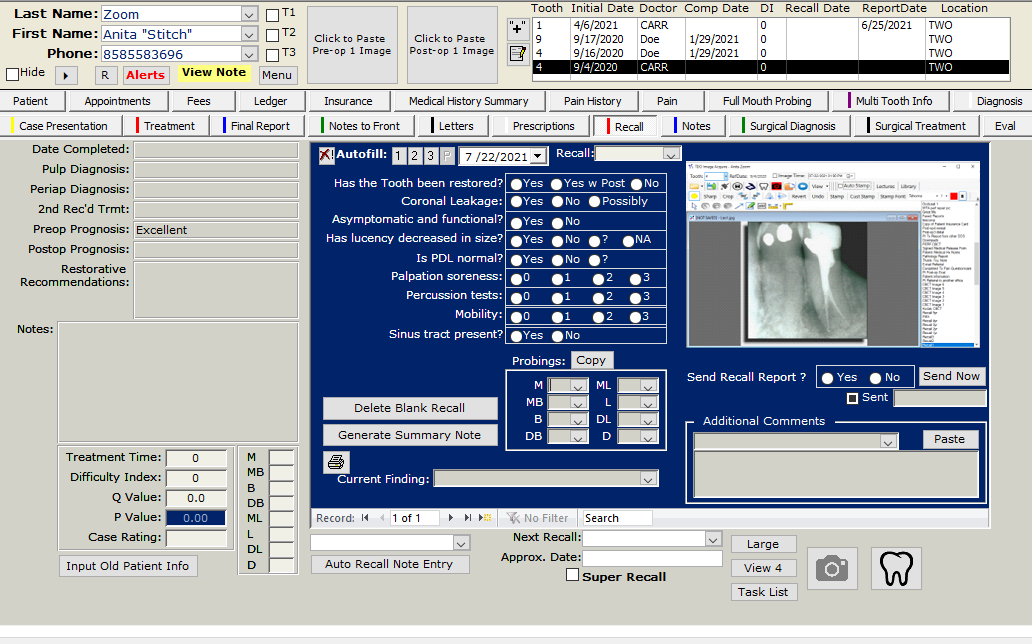

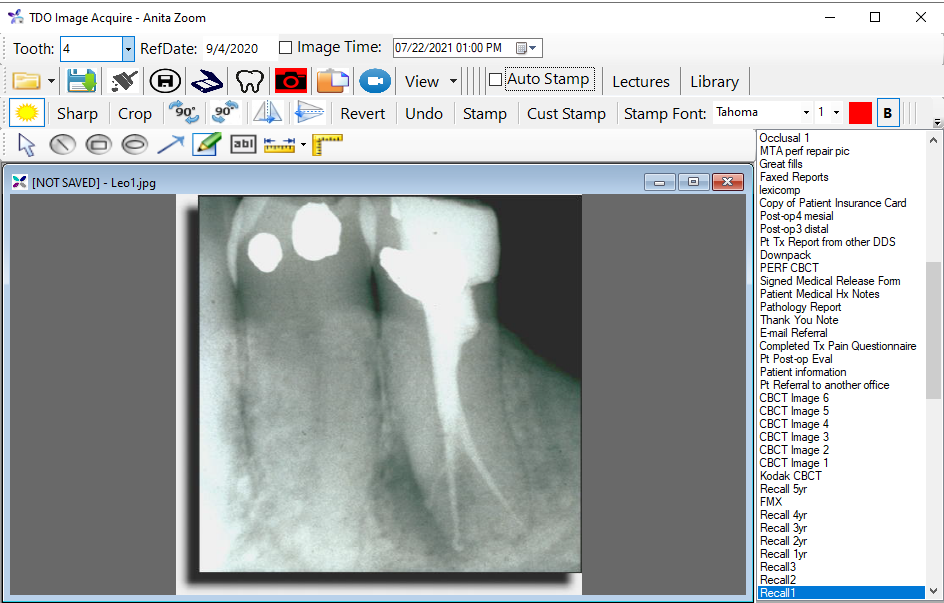

  • Once the image is taken and saved (Save button) in Acquire, it will automatically show in the Recall Page



If Provider needs to take another xray or photo for a different that needs recall, this can be done while Acquire page is still open. Please follow the steps below:



  • On Main Page, select the other tooth that needs a recall image to be taken



  • Make sure the info in the Recall page is filled out for that tooth as well



  • Since Acquire page is still open, take the xray or photo



  • Once the image is taken and saved (Save button) in Acquire, it will automatically show in the Recall Page
