Overview

When a referring or general Dentist sends over a patients CBCT scan via a DVD/CD disk, there is a way to sync this image into the patients chart

Detailed Instructions

How to accomplish this task:

• Have the office insert the disk into a workstation that can open 3D scans

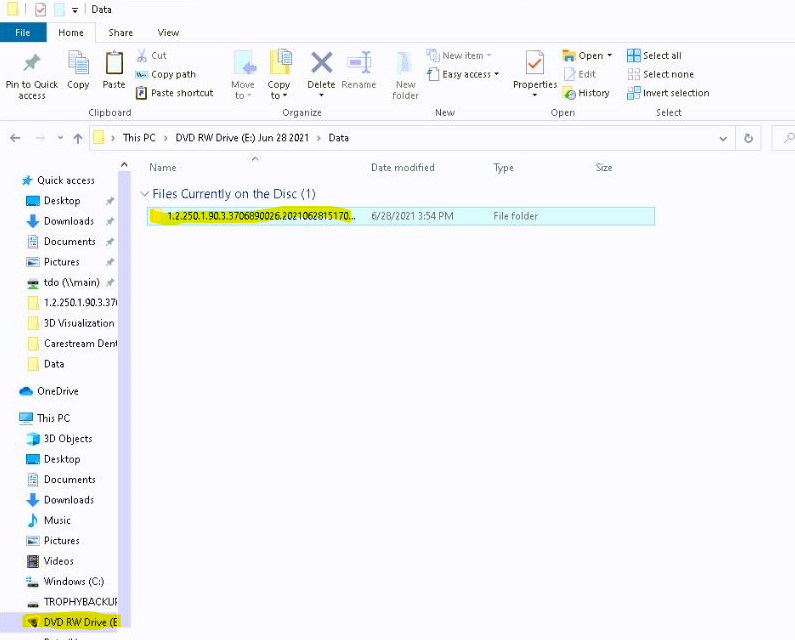

• Locate the drive where the disk is inserted and look for a DataXXXXXXXXX… folder
  • The Disk in file explorer should be located in "This PC"
  • The patients folder will not be listed as a "VOL_1", we will need to rename it later

•  Open a second file explorer window and navigate to where the 3D scans are located. Check for the patient’s ID folder. If it doesn’t exist, create a new folder.
  • If you are unsure where the Volumes are stored you can check in your TDO.
    • Setup> Site Configuration> Device Configurations
      • Older Versions of TDO 12.320b and lower may be located in the Edit Control Table
• Copy the data folder from the disk, and paste it to the patient’s ID folder where the volumes are stored
• Rename the folder that was just pasted from DataXXXXXXX….. folder to VOL_1 or to the next number folder if that one already exists.
• Use the CBCT Syncer to sync the scan into the patient’s chart from their C:\Program Files(x86)\TDOffice\Utilities or C:\Program Files\TDOffice\Utilities.
• Open the patient’s organizer to check that the scan is there and click on it to make sure it opens
• If the 3D thumbnail does not show in the image organizer try renaming the folder VOL_1 to VOL_2 and then re-run the CBCTsyncer tool
